C.T.I. 13-088-01 PISTON RING SET FOR 01-08 SUZUKI GRAND VITARA H27A 2.7L V6 DOHC

$60.40 USD
$60.40 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 13-088-01 PISTON RING SET FOR 01-08 SUZUKI XL-7 GRAND VITARA H27A 2.7L



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: H27A 2.7L DOHC V6
Compatible Model: SUZUKI GRAND VITARA
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Oversize 020 & 030 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2C4567, RS5Z9, RG20-108, SWS20210, 12140-52D00

PRODUCT SPECIFICATIONS:

6 CYL ENGINE SET

STD Piston Ring Size(mm)

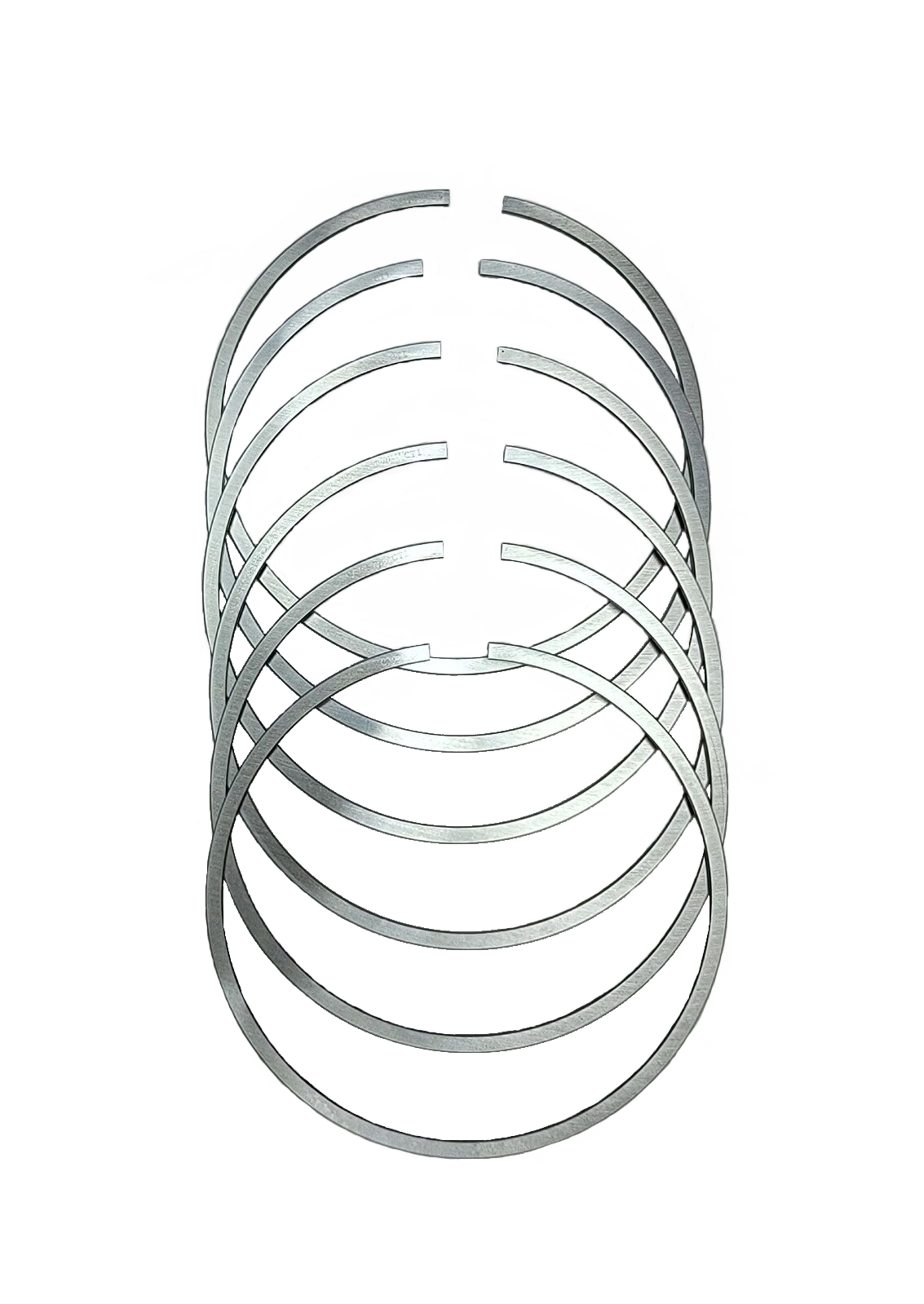

1st ring:  88*1.2*3.3mm

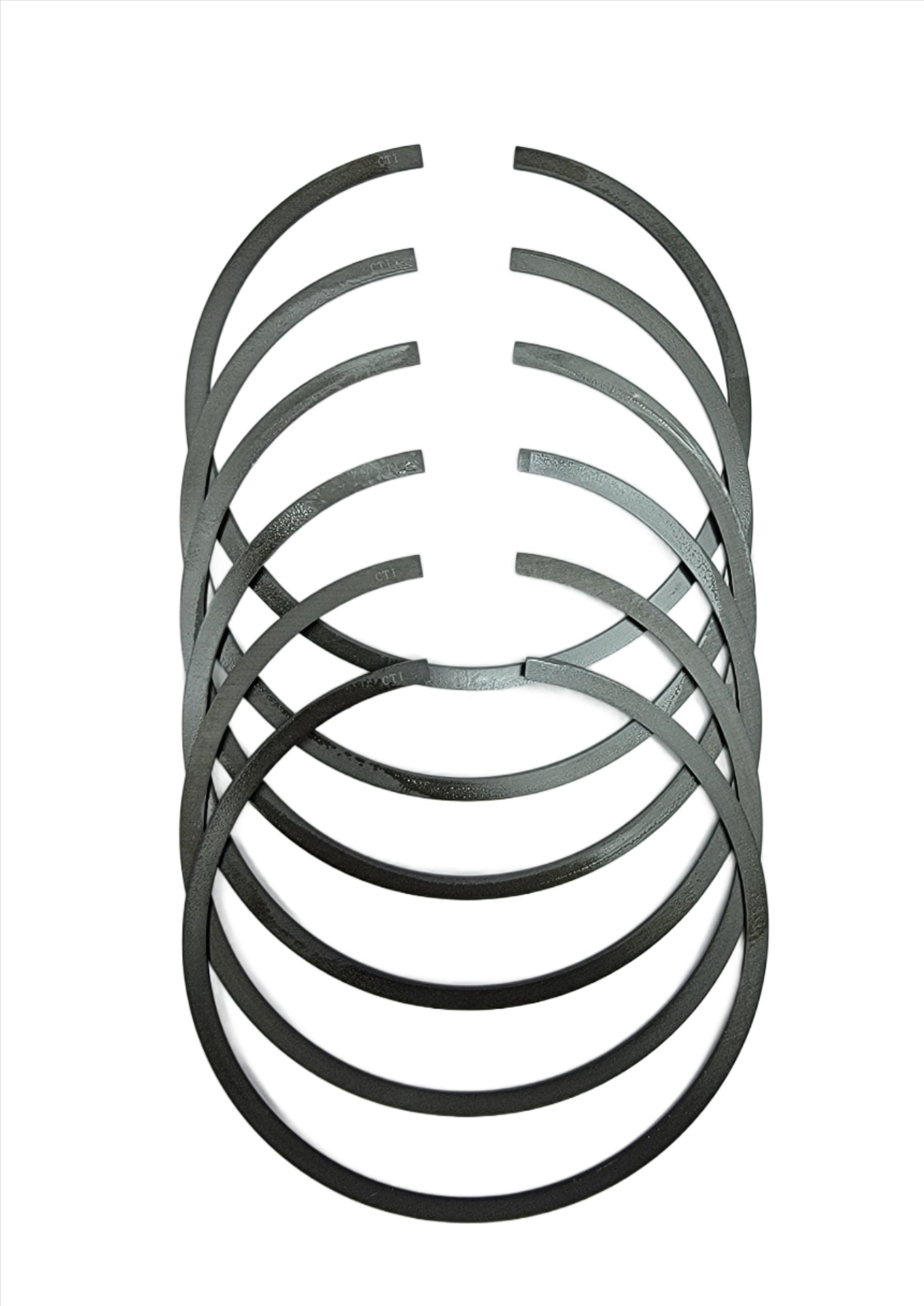

2nd ring: 88*1.5*3.3mm

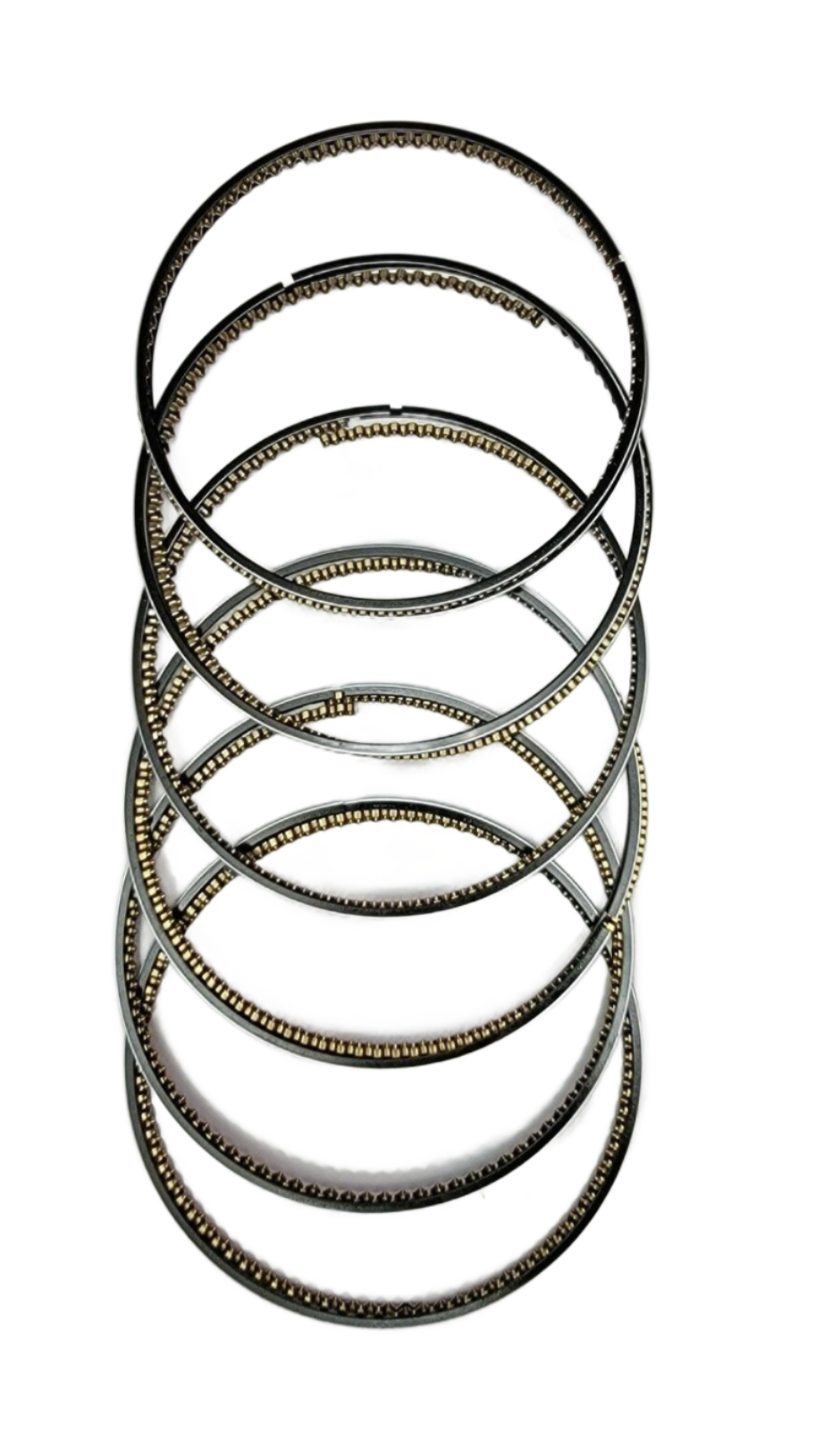

Oil Ring: 88*2.8*2.7mm

020 Piston Ring Size(mm)
1st ring:  88.5*1.2*3.3mm
2nd ring: 88.5*1.5*3.3mm
Oil Ring: 88.5*2.8*2.7mm

Oversize 030 Piston Ring Size(mm)
1st ring:  88.75*1.2*3.3mm
2nd ring: 88.75*1.5*3.3mm
Oil Ring: 88.75*2.8*2.7mm

Package Contents:

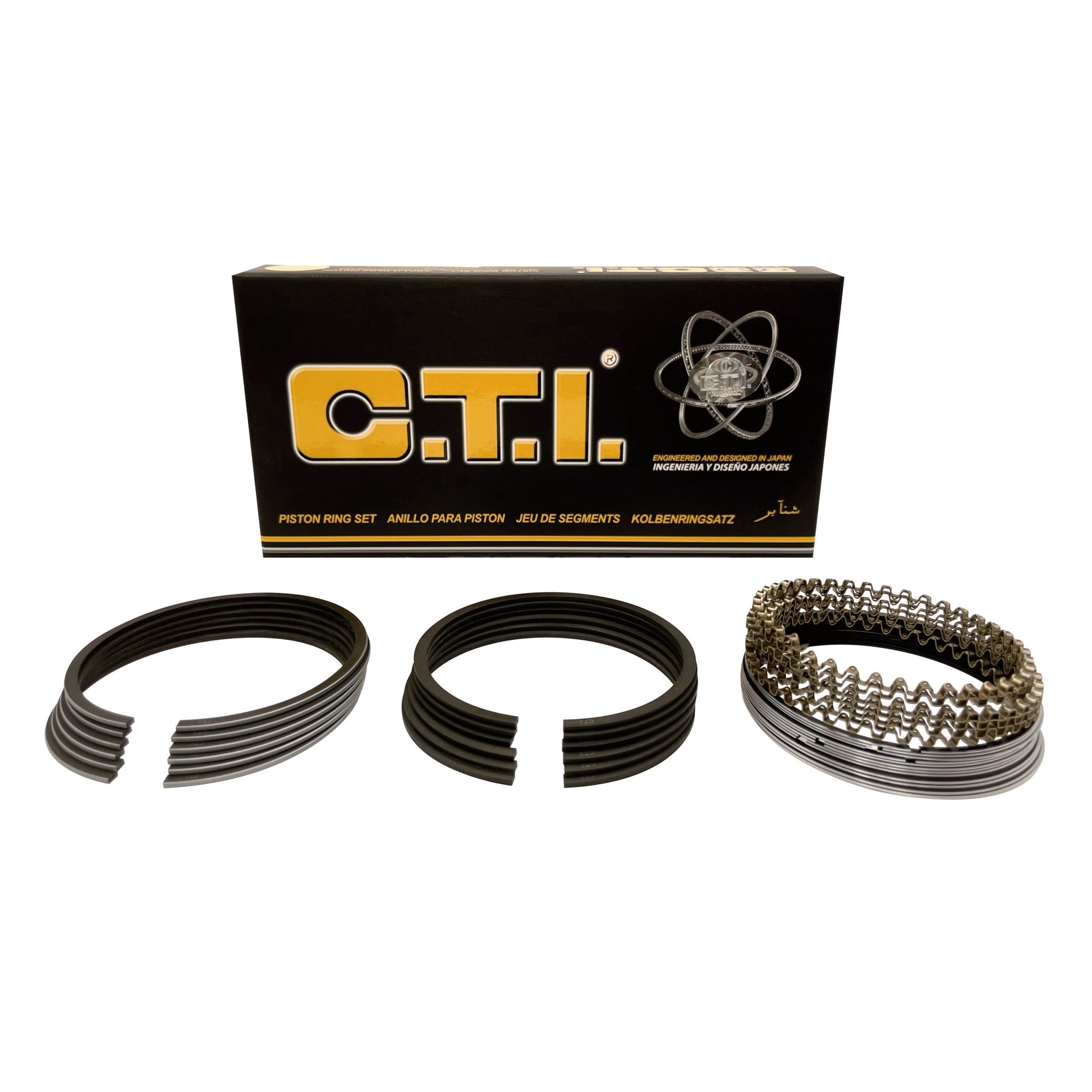

1 C.T.I. 13-088-01 Piston Ring Set
