C.T.I. 14-091-01 PISTON RING SET FOR 86-89 TOYOTA VAN 2.2L L4 OHV 8v

$40.99 USD
$40.99 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 14-091-01 PISTON RING SET FOR 86-89 TOYOTA VAN 2.2L L4 OHV 8v



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: 2.2L 4YEC OHV
Compatible Model: TOYOTA VAN
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Oversize 020/030 is also available in our selecting menu
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2C4480, 013-8187, C91014, E-611X, RSTO24L
PRODUCT SPECIFICATIONS:
4 CYL ENGINE SET

STD Piston Ring Size(mm)

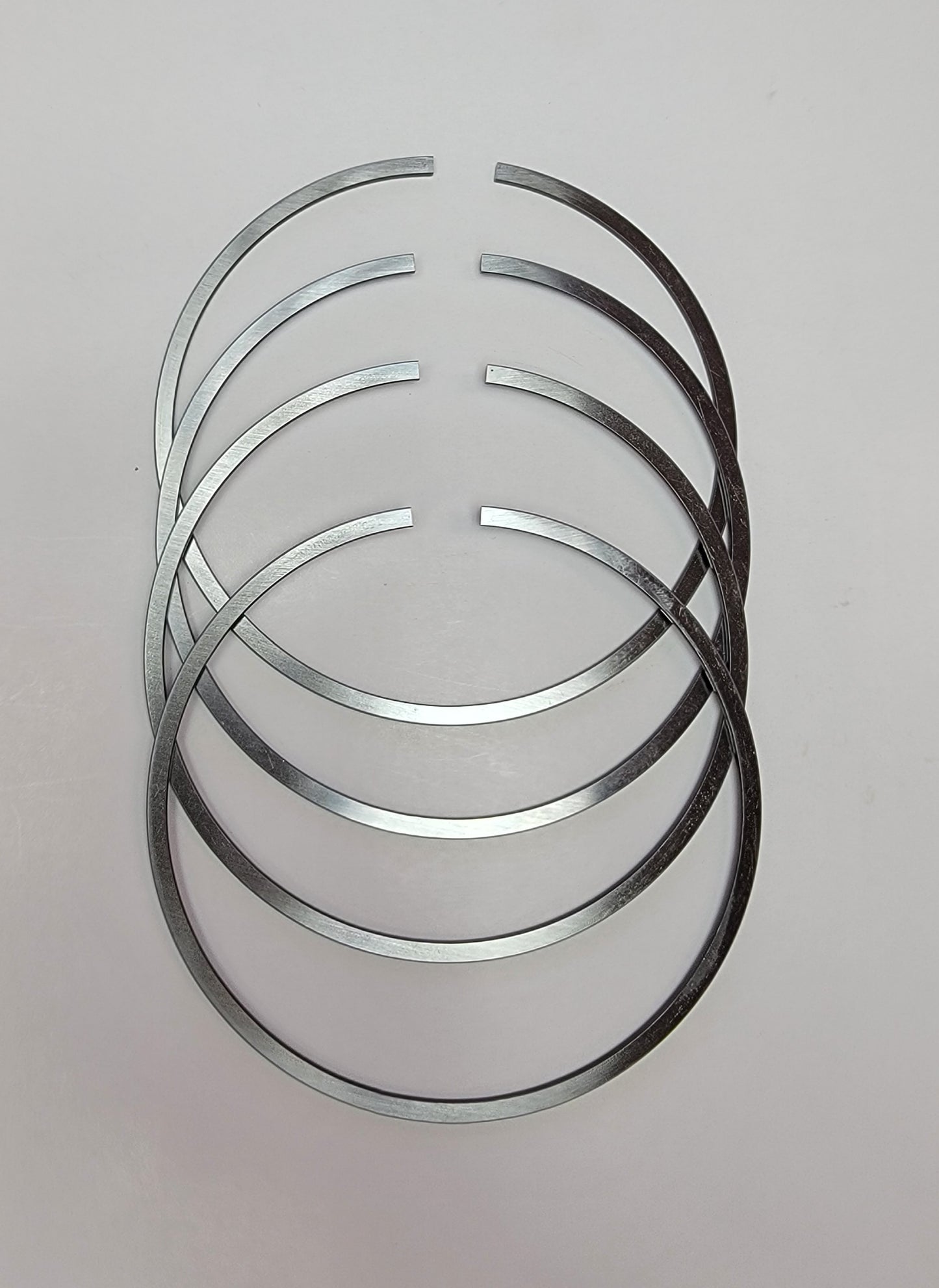

1st ring:  91*1.5*3.3mm

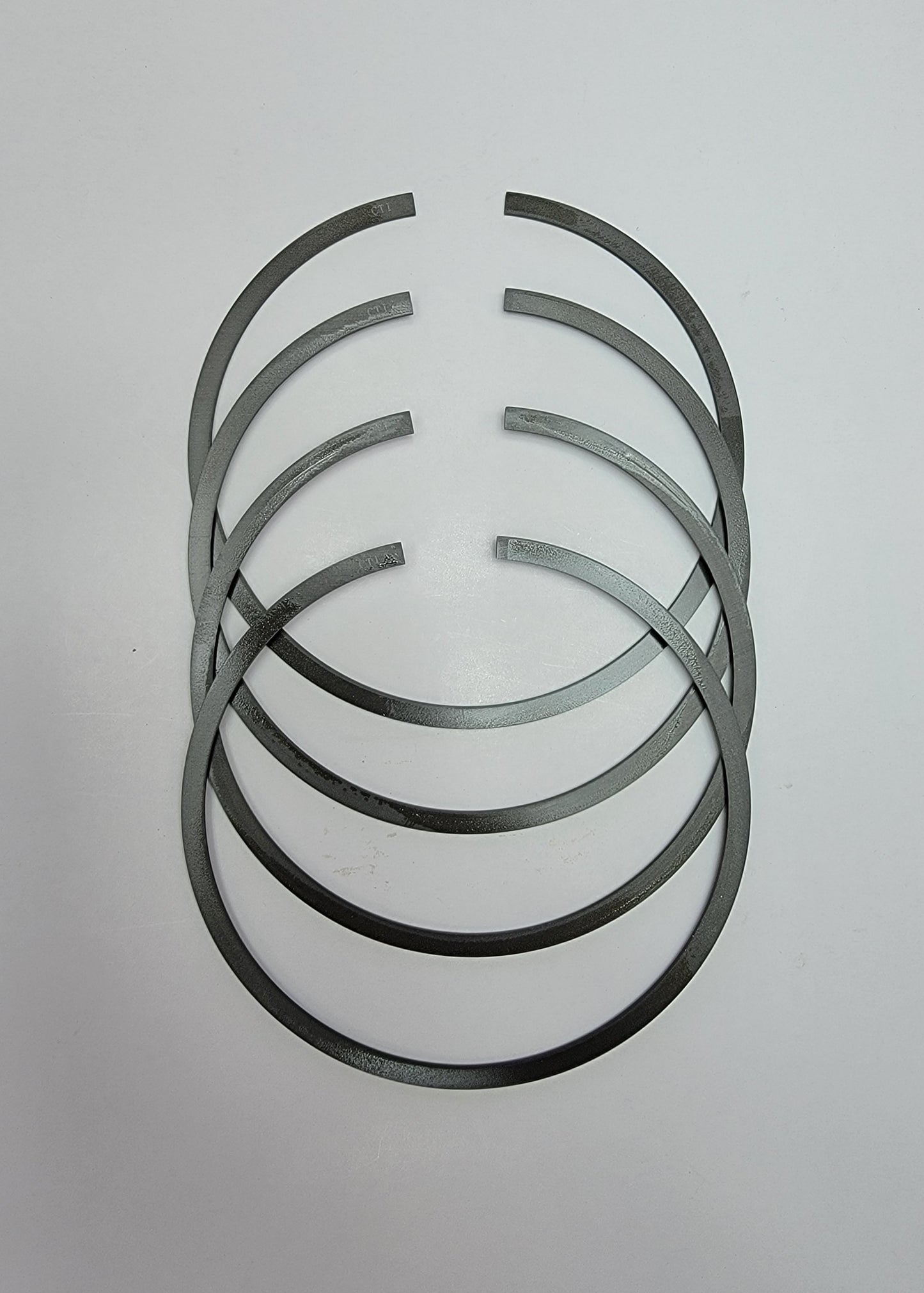

2nd ring: 91*1.5*3.95mm

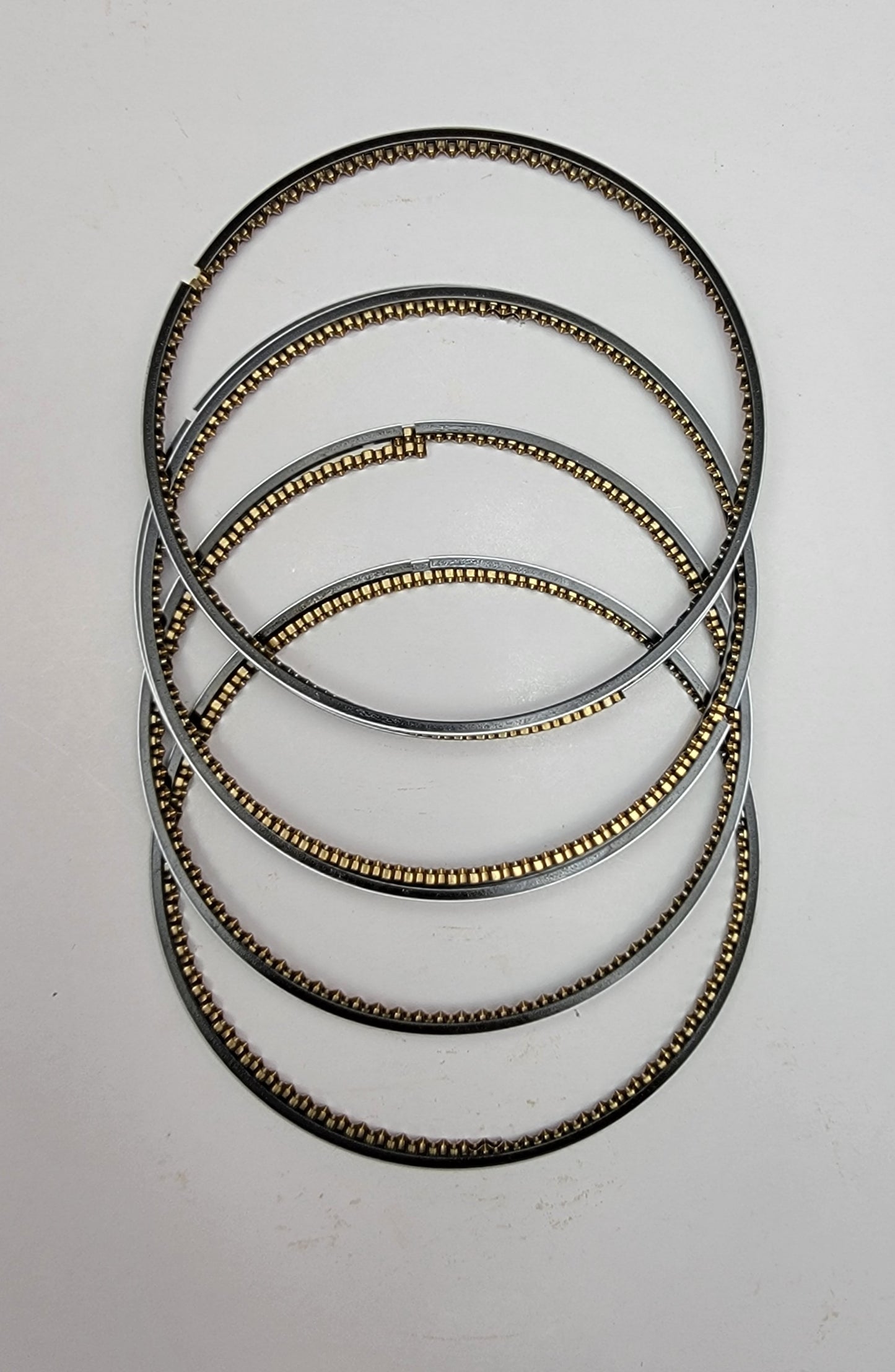

Oil Ring: 91*4.0*3.1mm

Oversize 020 Piston Ring Size(mm)
1st ring:  91.5*1.5*3.3mm
2nd ring: 91.5*1.5*3.95mm
Oil Ring: 91.5*4.0*3.1mm

Oversize 030 Piston Ring Size(mm)
1st ring: 91.75*1.5*3.3mm
2nd ring: 91.75*1.5*3.95mm
Oil Ring: 91.75*4.0*3.1mm


Package Contents:

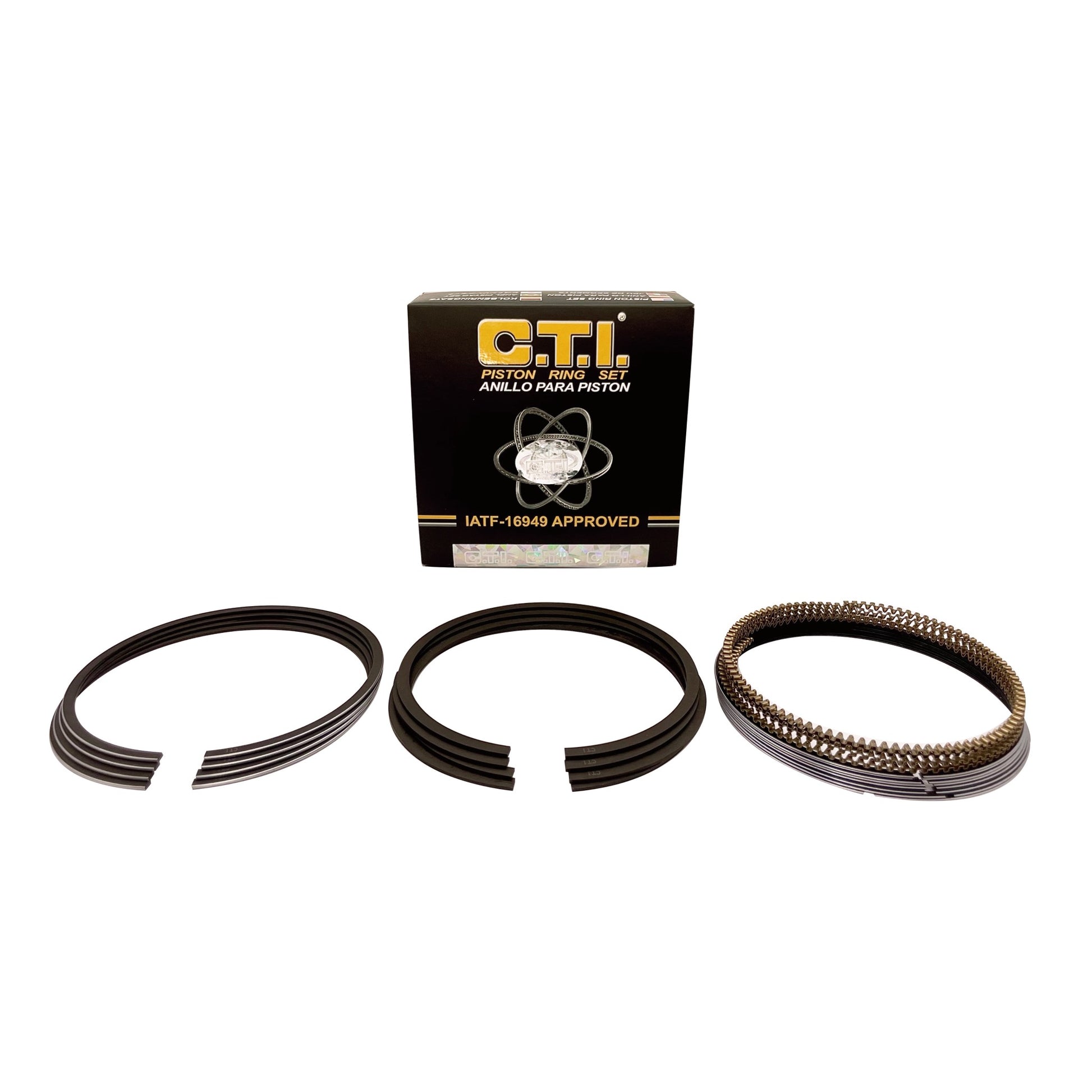

1 C.T.I. 14-091-01 Piston Ring Set
