C.T.I. 24-101-01 PISTON RING SET FOR 86-95 GMC CHEVROLET BLAZER 5.7L OHV 16v

$62.99 USD
$62.99 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 24-101-01 PISTON RING SET FOR 86-95 GMC CHEVROLET BLAZER 5.7L OHV 16v



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: 5.7L OHV
Compatible Model: GMC CHEVROLET CADILLAC
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed OEM specifications.

Oversize 020/030/040 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2C5615, CPW7749, R10258, E-377X, 41476CP, 2M5615
PRODUCT SPECIFICATIONS:
8 CYL ENGINE SET

STD Piston Ring Size(mm)

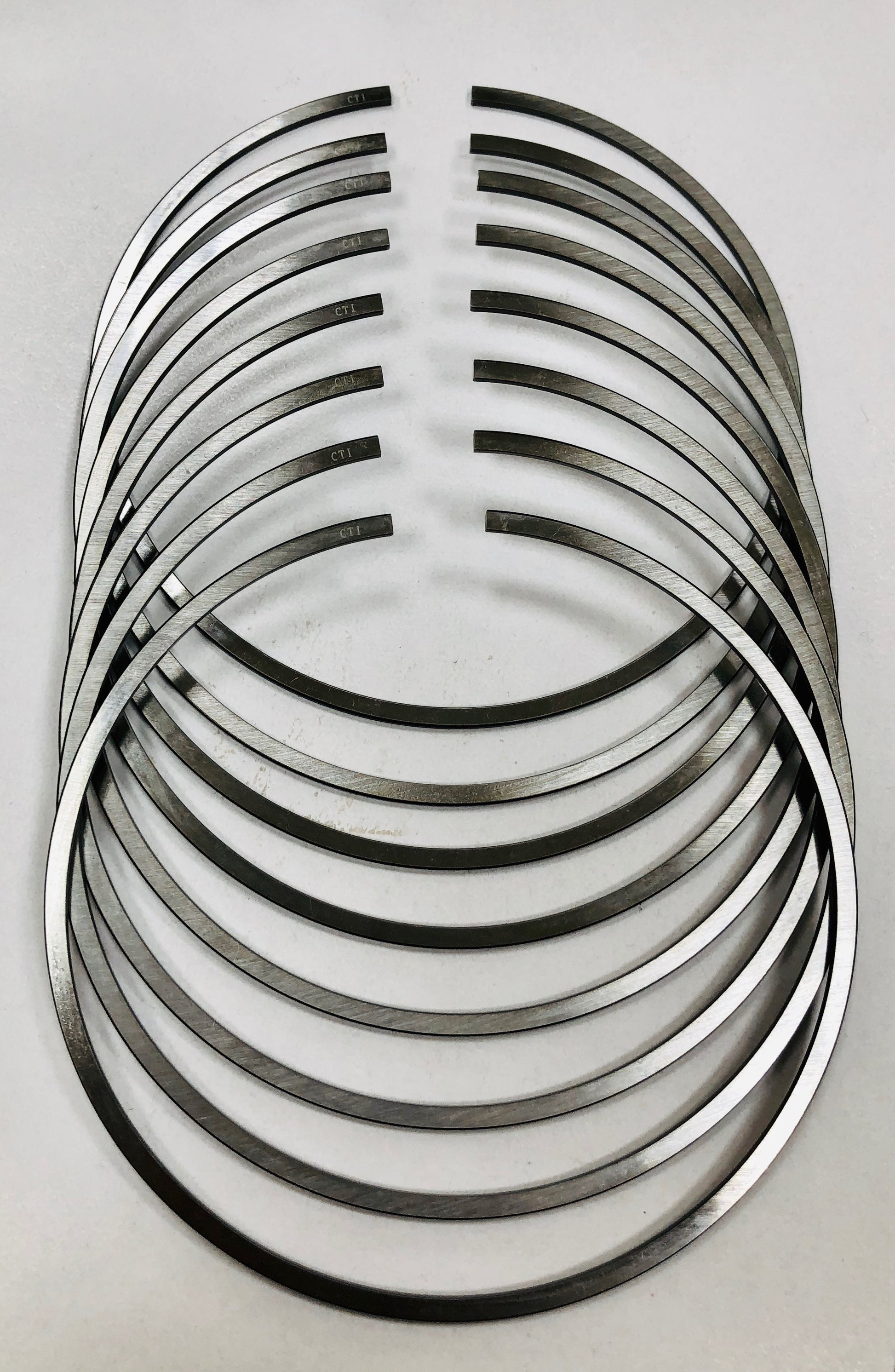

1st ring:  101.6*2.0*4.6mm

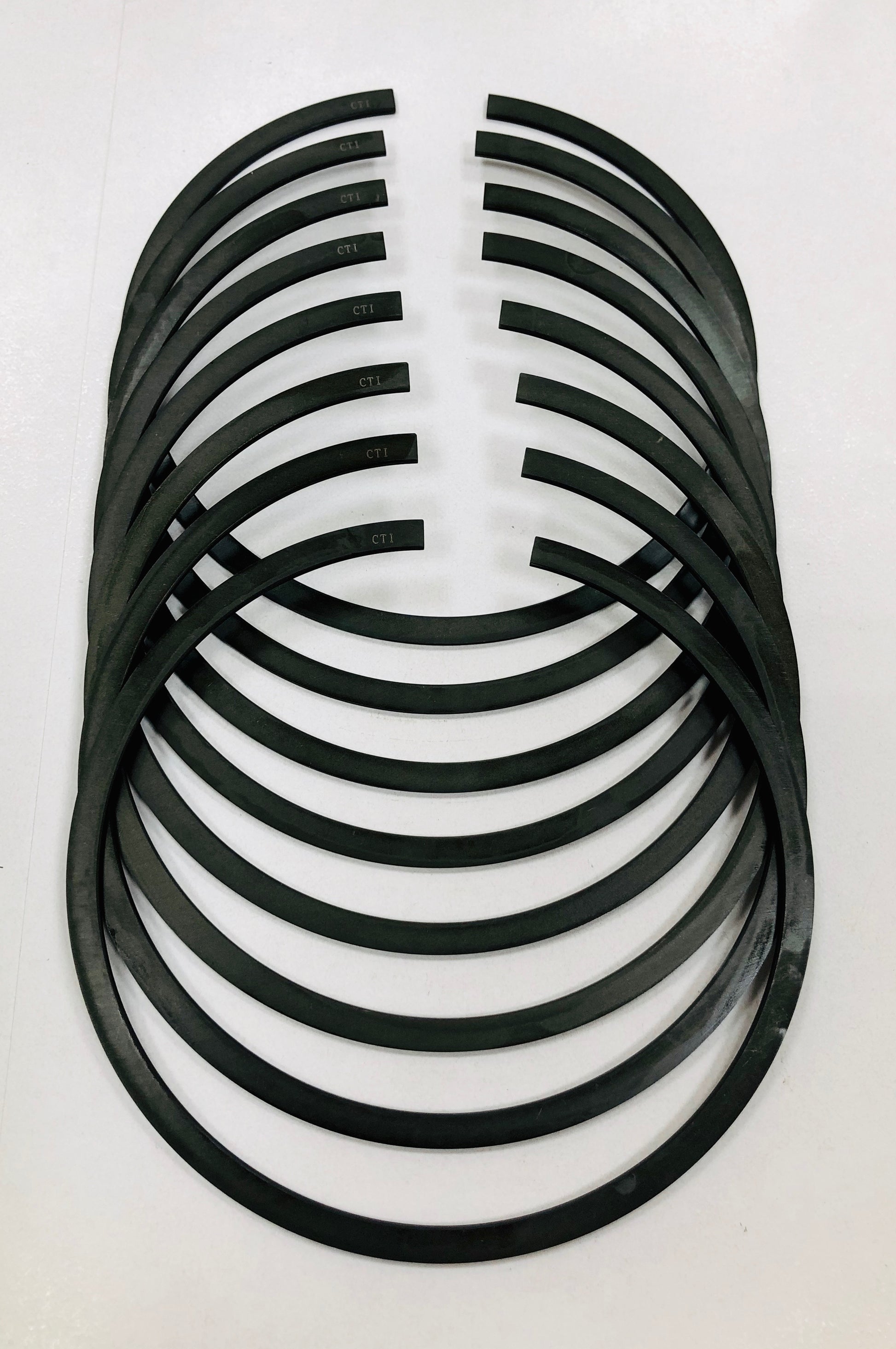

2nd ring: 101.6*2.0*4.6mm

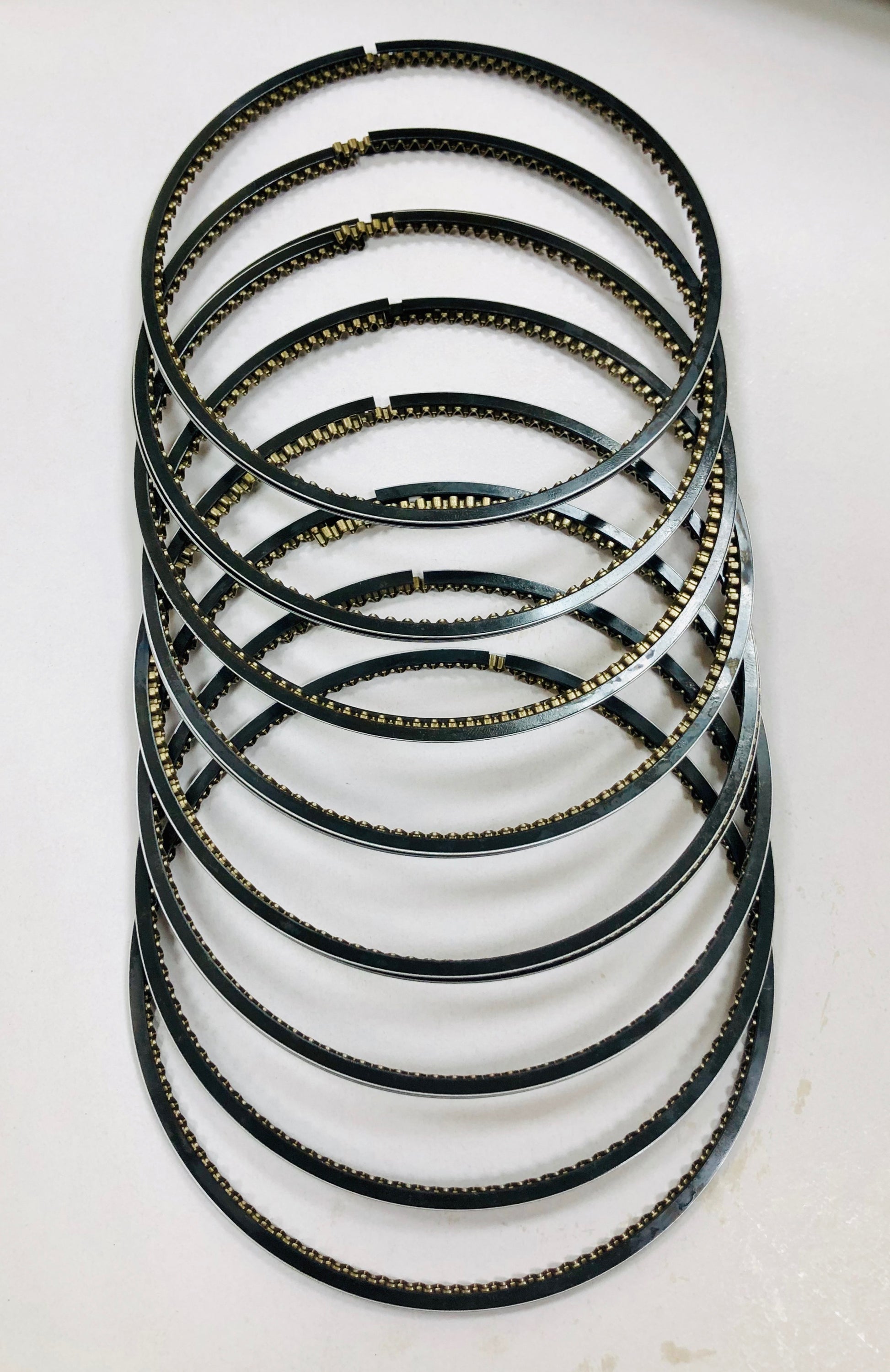

Oil Ring: 101.6*4.75*4.7mm

Oversize 020 Piston Ring Size(mm)
1st ring:  102.1*2.0*4.6mm
2nd ring: 102.1*2.0*4.6mm
Oil Ring: 102.1*4.75*4.7mm

Oversize 030 Piston Ring Size(mm)
1st ring:  102.35*2.0*4.6mm
2nd ring: 102.35*2.0*4.6mm
Oil Ring: 102.35*4.75*4.7mm

Oversize 040 Piston Ring Size(mm)
1st ring:  102.6*2.0*4.6mm
2nd ring: 102.6*2.0*4.6mm
Oil Ring: 102.6*4.75*4.7mm

Package Contents:

1 C.T.I. 24-101-01 Piston Ring Set
