C.T.I. 31-902-02 PISTON RING SET FOR 91-16 FORD LINCOLN F150 E250 4.6L 5.4L SOHC

$56.99 USD
$56.99 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 31-902-02 PISTON RING SET FOR 91-16 FORD LINCOLN F150 E250 4.6L 5.4L SOHC



Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: DOHC SOHC 4.6L 5.4L WINSDOR TRITON Cu. 281, 330 VIN H, L, M, 3, 5, 6
Compatible Model: FORD LINCOLN MERCURY F-150 CROWN VICTORIA
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed to OEM specifications.

Oversize 020/030/040 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2M4628, S90228, E-916K, 41787
PRODUCT SPECIFICATIONS:
8 CYL ENGINE SET

STD Piston Ring Size(mm)

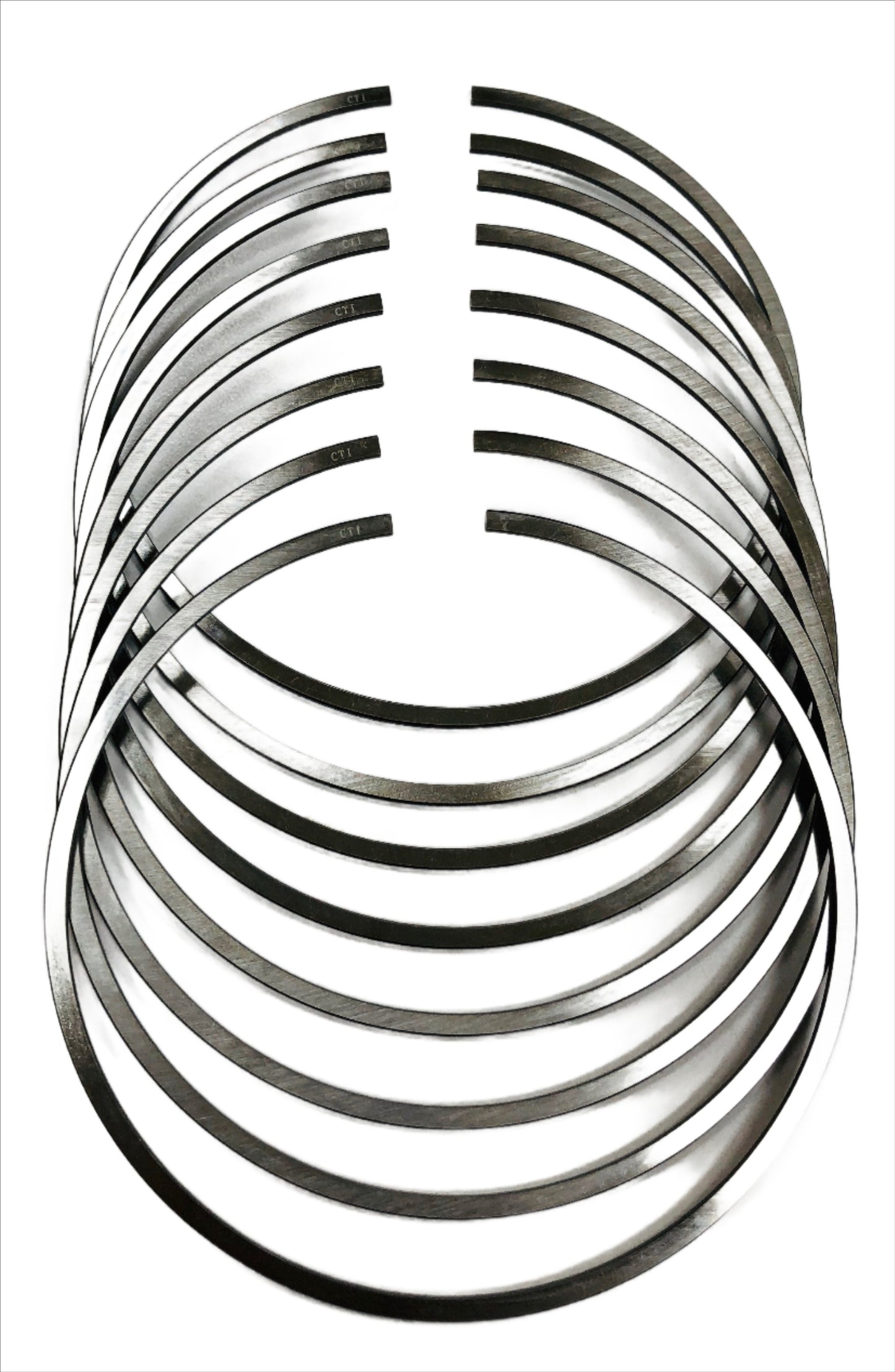

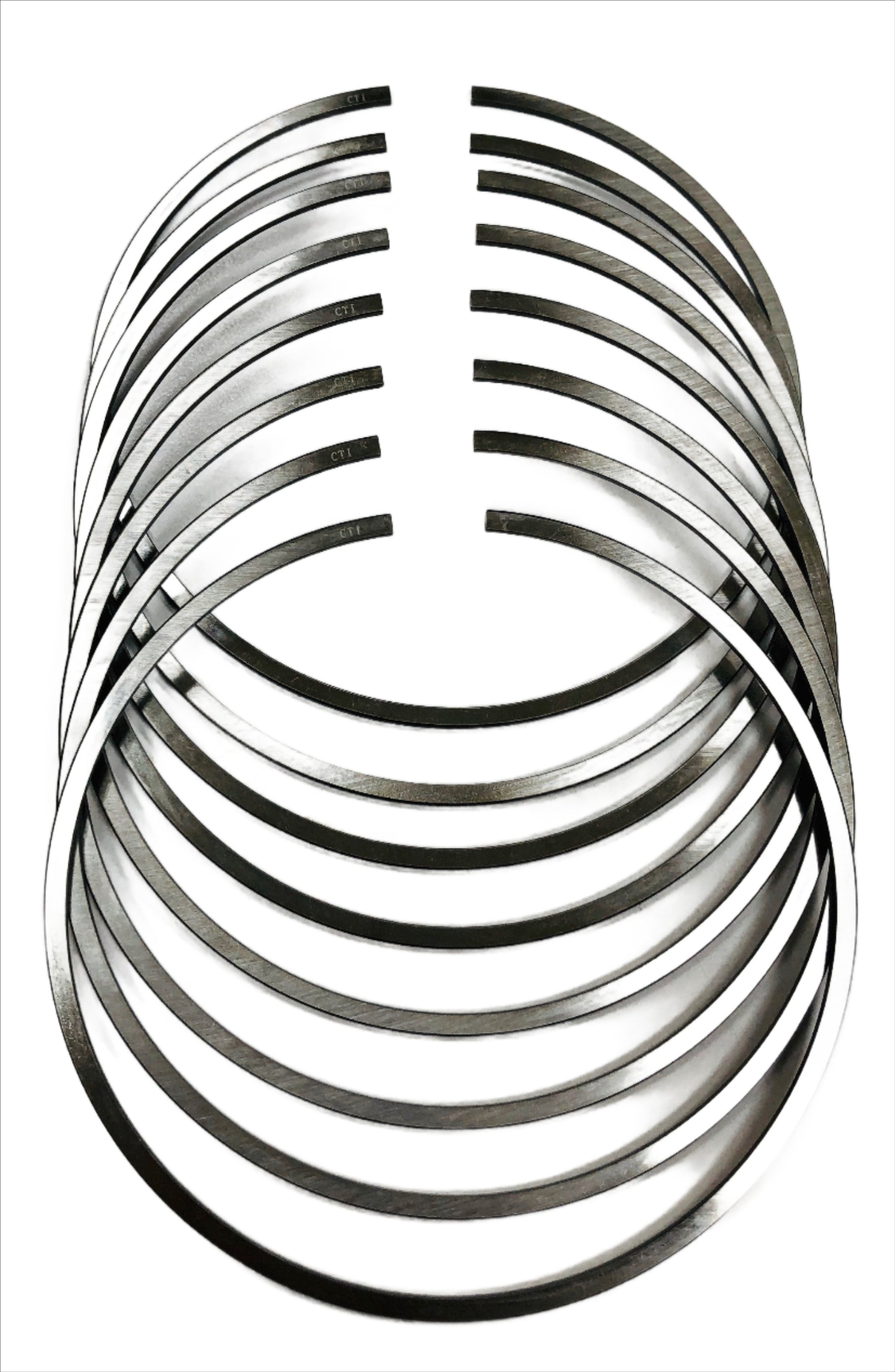

1st ring:  90.2*1.5*3.3mm

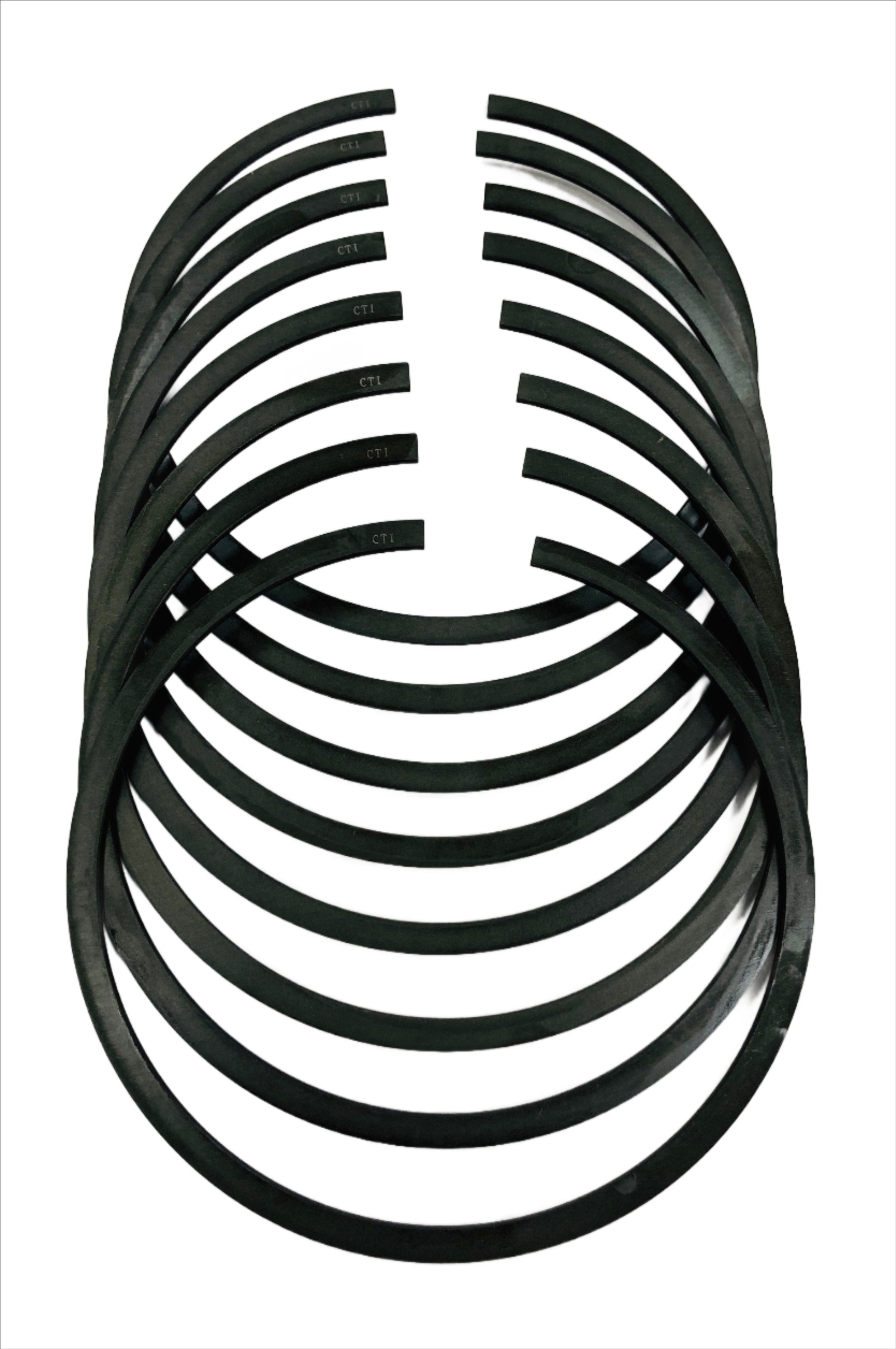

2nd ring: 90.2*1.5*4.1mm

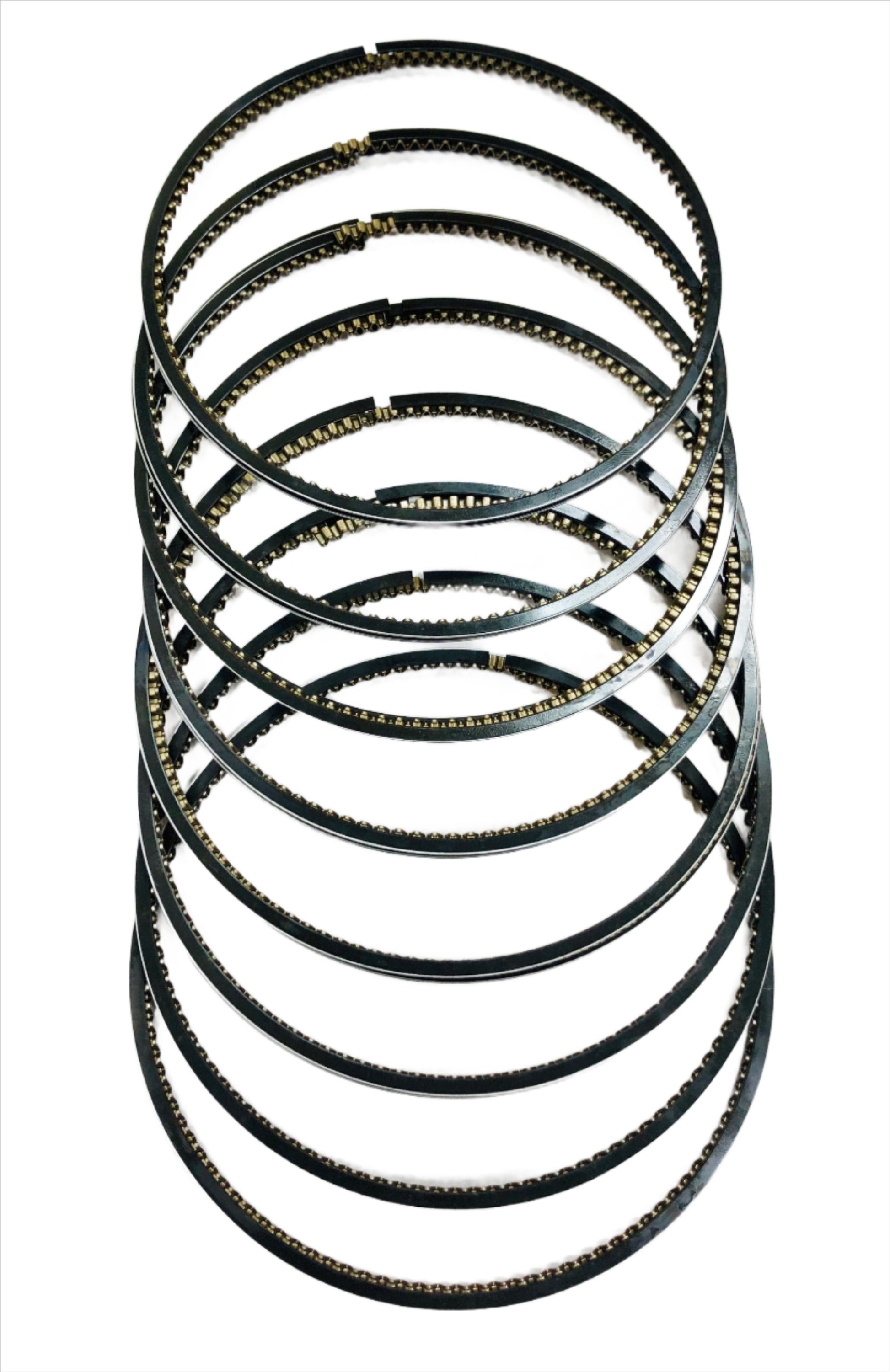

Oil Ring: 90.2*3.0*3.6mm

Oversize 020 Piston Ring Size(mm)
1st ring:  90.7*1.5*3.3mm
2nd ring: 90.7*1.5*4.1mm
Oil Ring: 90.7*3.0*3.6mm

Oversize 030 Piston Ring Size(mm)
1st ring:  90.95*1.5*3.3mm
2nd ring: 90.95*1.5*4.1mm
Oil Ring: 90.95*3.0*3.6mm

Oversize 040 Piston Ring Size(mm)
1st ring:  91.2*1.5*3.3mm
2nd ring: 91.2*1.5*4.1mm
Oil Ring: 91.2*3.0*3.6mm

Package Contents:

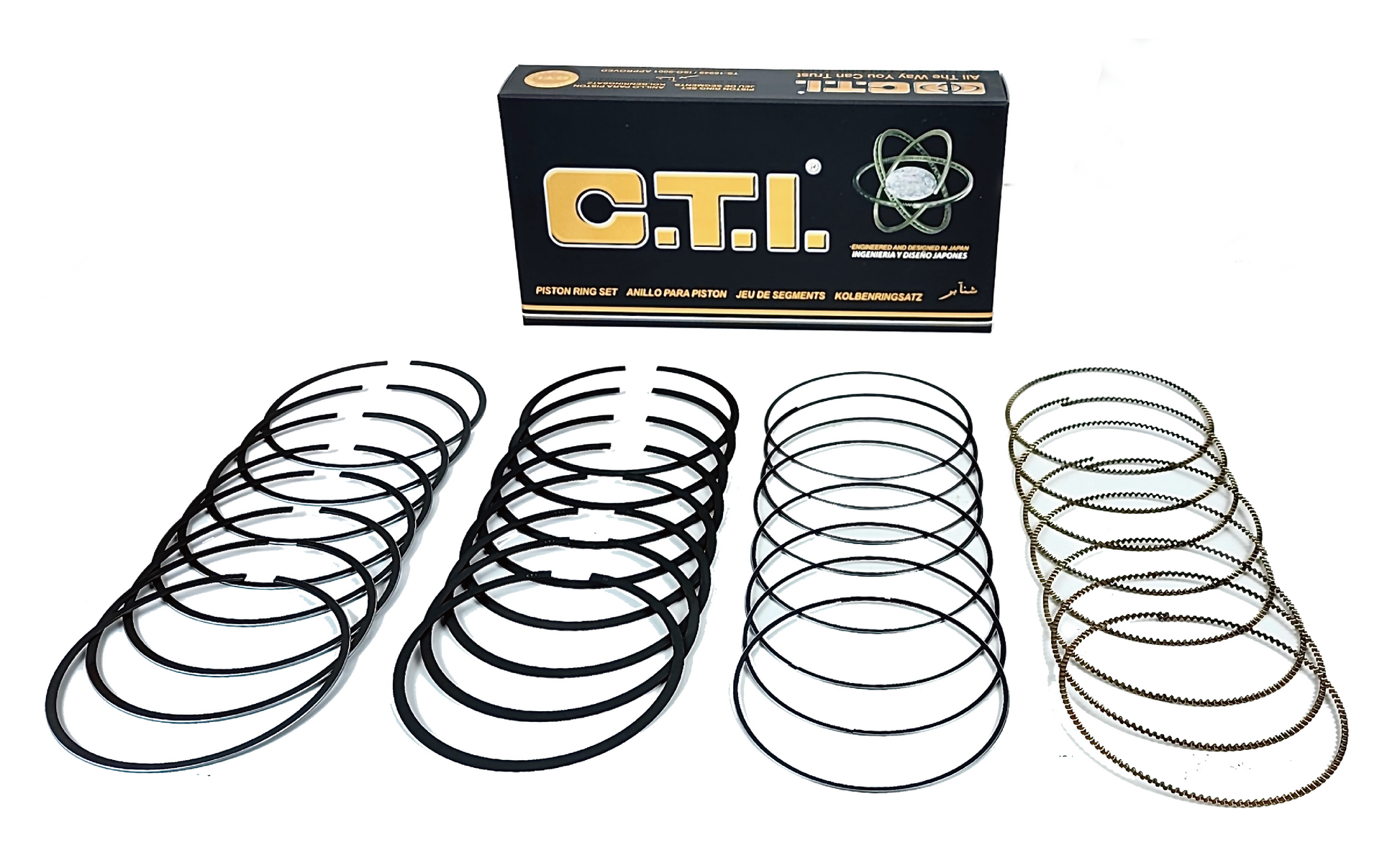

1 C.T.I. 31-902-02 Piston Ring Set
