C.T.I. 32-103-02 PISTON RING SET FOR 07-17 CADILLAC CHEVROLET CAMARO GMC 6.2L V8

$75.00 USD
$75.00 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size
C.T.I. 32-103-02 PISTON RING SET FOR 07-17 CADILLAC CHEVROLET CAMARO GMC 6.2L V8




Condition: 100% New
Brand: C.T.I.
Surface: Chrome Plated
Engine Type: 6.2L OHV V8
Compatible Model: CADILLAC CHEVROLET GMC YUKON
ISO-9001/IATF-16949 Approved
Manufactured quality meet or exceed to OEM specifications.

Oversize 020/030 is also available in our selecting menu.
Please refer to the images for an accurate description of the parts included in this listing.

REFERENCE NUMBERS:
- 2M5292, M40718, 42082CP
PRODUCT SPECIFICATIONS:
8 CYL ENGINE SET

STD Piston Ring Size(mm)

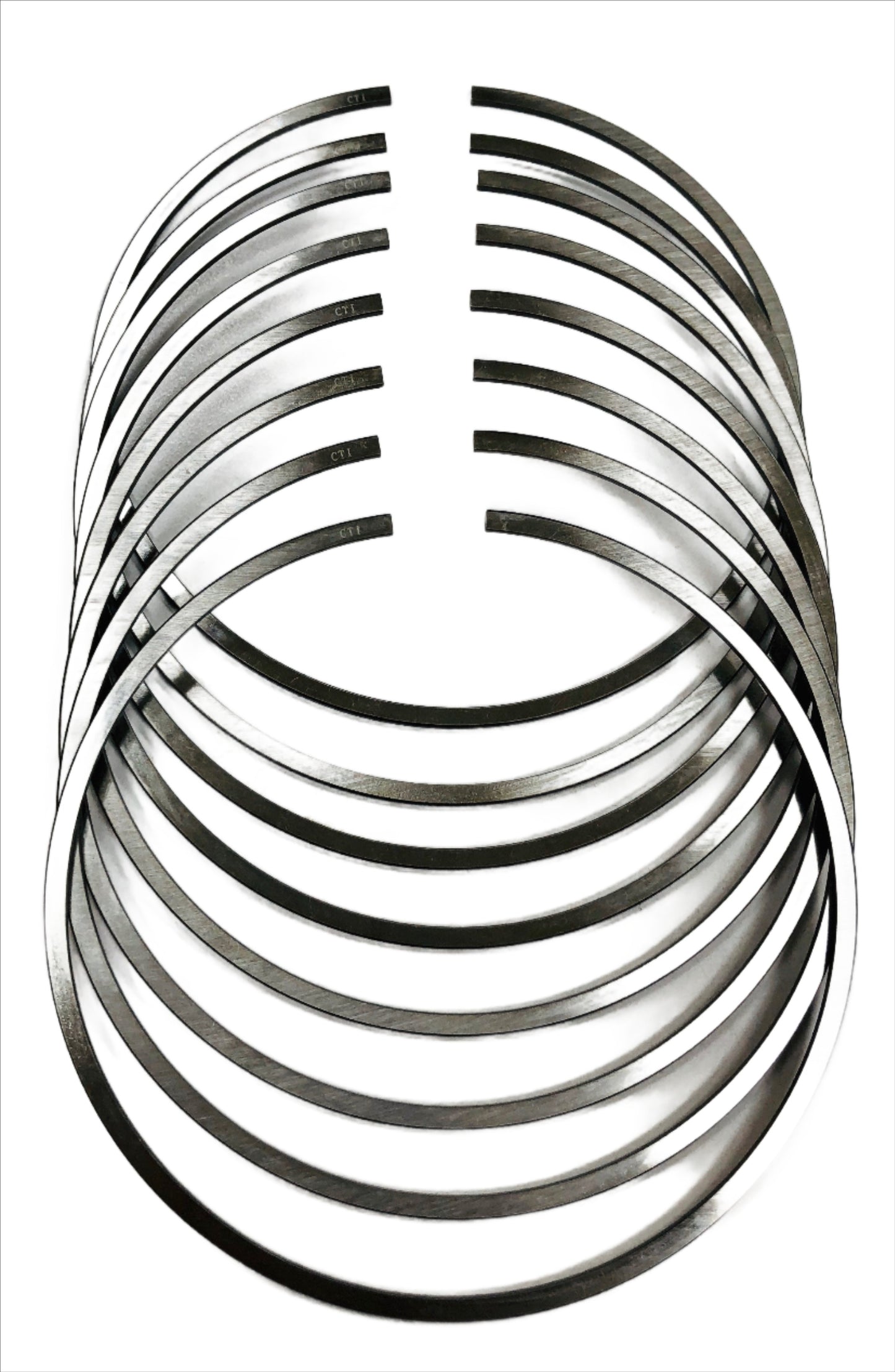

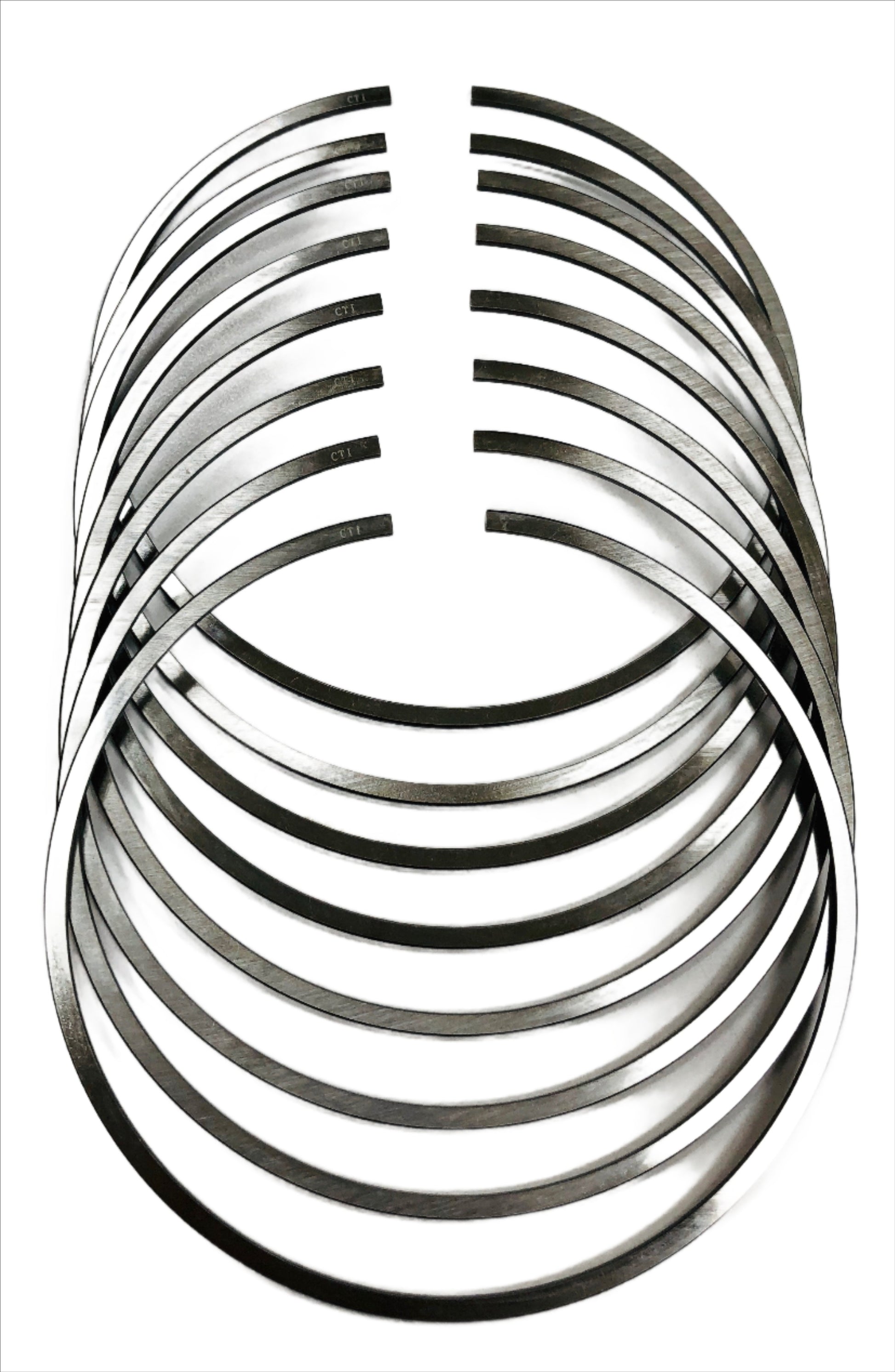

1st ring:  103.25*1.5*3.85mm

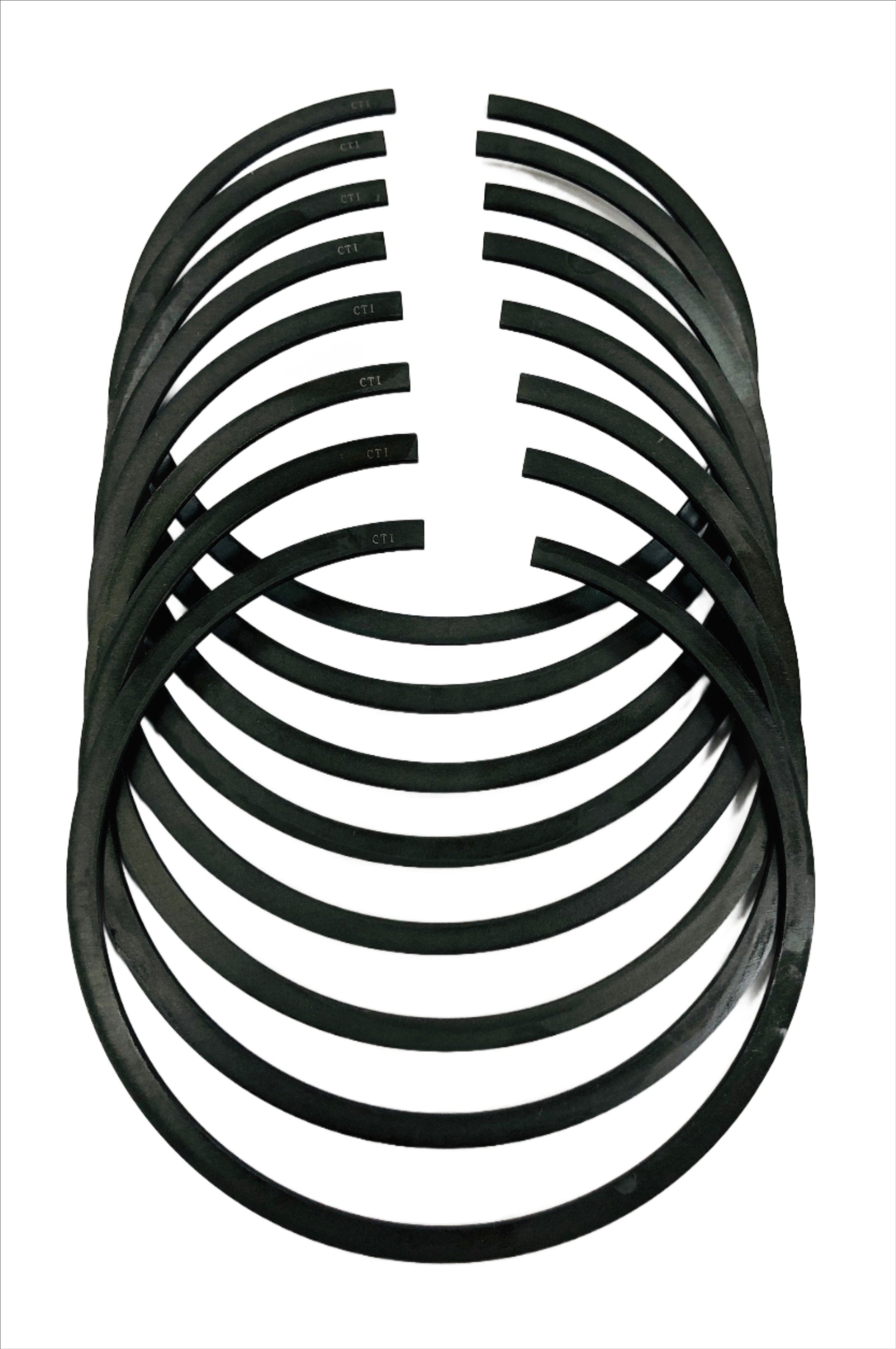

2nd ring: 103.25*1.5*4.7mm

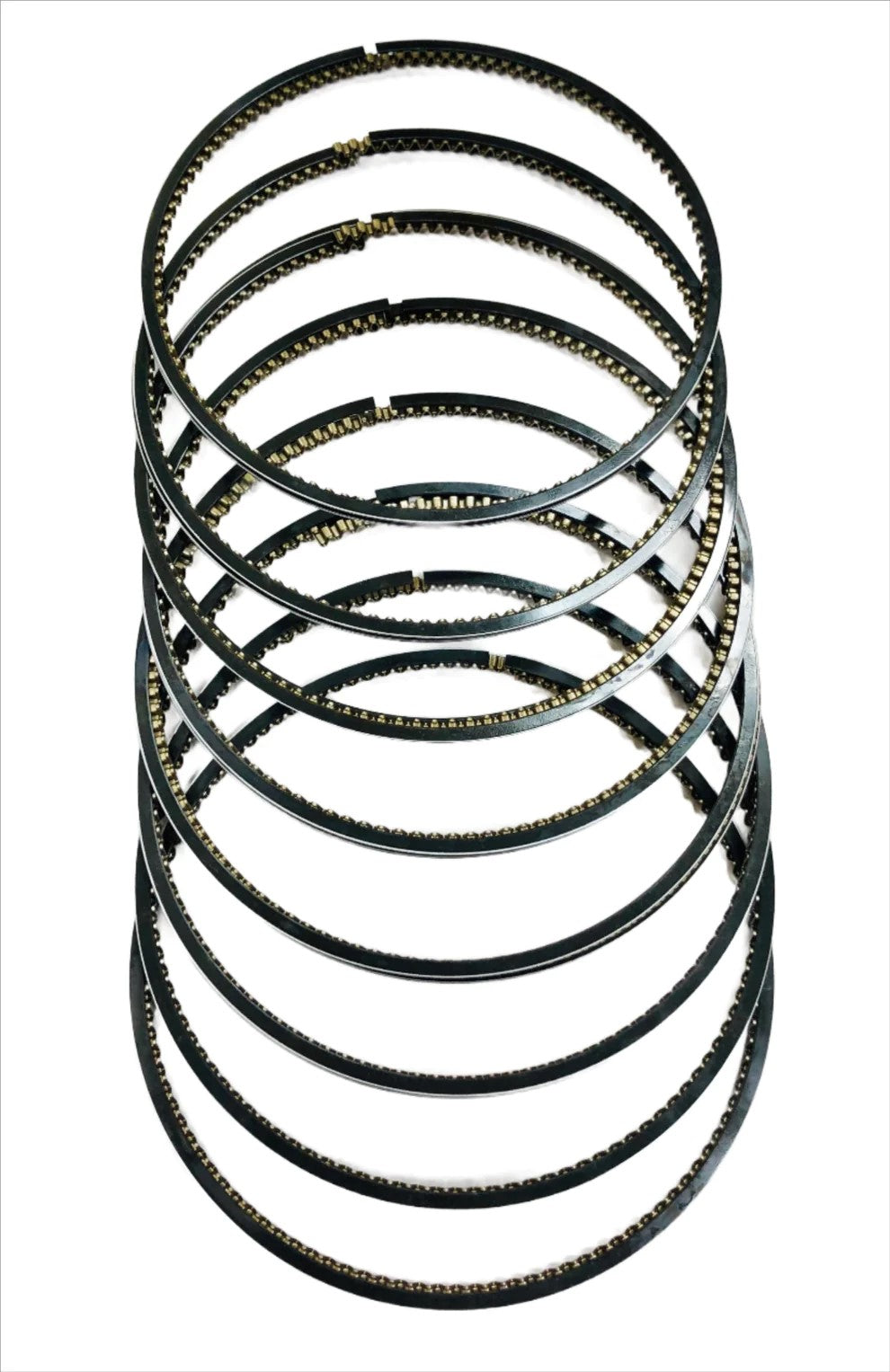

Oil Ring: 103.25*2.5*3.2mm

Oversize 020 Piston Ring Size(mm)
1st ring:   103.75*1.5*3.85mm
2nd ring:  103.75*1.5*4.7mm
Oil Ring:  103.75*2.5*3.2mm

Oversize 030 Piston Ring Size(mm)
1st ring:   104*1.5*3.85mm
2nd ring:  104*1.5*4.7mm
Oil Ring:  104*2.5*3.2mm

Package Contents:

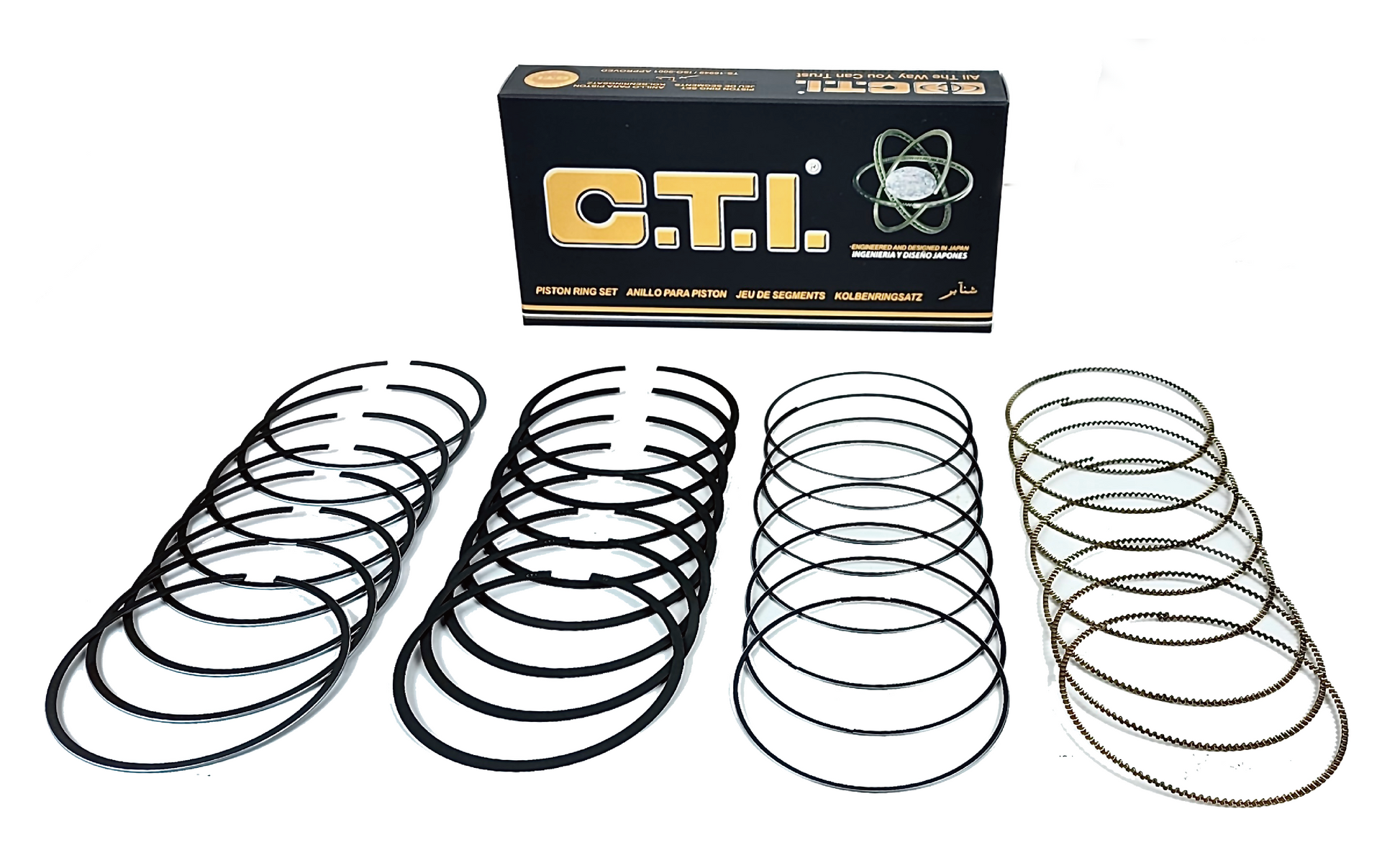

1 C.T.I. 32-103-02 Piston Ring Set
